DX51D Construction Ppgi Coil Sheet Z80 Coating

Brand Name : Tianzhu

Certification : ISO

Place of Origin : China

MOQ : 10 tons

Price : $680.00/tons >=10 tons

Payment Terms : T/T, Western Union

Supply Ability : 1000 Ton/Tons per Week

Delivery Time : 8-14 days

Packaging Details : Standard Sea-worthy Packing

Application : cutting sheets, making small tools, making corrugated sheets, making container, making fences

Type : Steel Coil

Thickness : 0.12-2mm

Standard : ASTM, ASTM-A792,AISI,GB,DIN-50976,JIS G 3302/3321,EN 10142/10215

Width : 700-2000mm

Certificate : JIS, ISO9001

Grade : DC01 DX51D SGCC, DX51D+Z and so on

Coating : Z61-Z80

Tolerance : ±1%

Processing Service : Punching, Cutting

Product Name : Ppgi Galvanized Steel Coil

Material : SGCC, DX51D+Z and so on

Color : RAL color or customized

Coil ID : 508mm or 610mm

Zinc Coating : 40-275g/m2

PRICE TERM : CIF CFR FOB EXW

MOQ : 5 Tons

Sample : Sample Freely

Package : Standard Seaworthy Package--wooden Pallet

Contact Now

How much does a PPGI sheet weight per square meter?
PPGI Sheet | Samples & Value-added Services Available
For example, if your GI color coated sheets are gauge 28 (0.38 mm) in thickness, the PPGI sheet weight per sqm is about 2.98 kg. If the thickness is gauge 24 (about 0.61 mm), the weight per square meter is about 4.79 kg. Below let's calculate the weight of the 0.5 mm pre-painted galvanized profile sheet.

How do you calculate the weight of a PPGI sheet?
How to Calculate Weight of PPGI Sheet?
The base metal of PPGI is carbon steel, whose density is about 7.85 tons/cubic meters. For example, if the PPGI sheet is 0.5 mm in thickness, 0.9 m in width, and 2.4 m in length, the weight per piece will be 0.5*0.9*2.4*7.85=8.478 kg.

Product Description

Name Galvanized Steel Coil / Strip
Technical Standard: JIS 3302 / ASTM A653 / EN10143 / EN 10142 / EN 10147 /EN 10292,
Grade DX51D / DX52D/ DX53D/ S250, S280, 320GD,SGCC
Types: Commercial / Drawing / Deep Drawing / Structural quality
Width 650/726/820/914/1000/1200/1219/1220/1250mm/1500mm
Thickness 0.12-1.0mm (0.12-0.5mm is the most advantage thickness)1.0-4.0mm
Package Weight 3-8tons per coil or as required
Type of coating: Galvanized
Zinc coating Z60-275g/m²
Hardness HRB50-71(CQ Grade),HRB45-55(DQ Grade)
Tensile Strength 270-500(CQ Grade),270-420(DQ Grade)
Surface treatment Passivation(C),Oiling(O),Lacquer sealing(L),Phosphating(P),Untreated(U)
Surface structure: zero spangle / minimized spangle / regular spangle/ big regular spangle
Application: Building, Corrugated sheet Roofing, Electrical, Appliances, Automobile industry, Transport Packaging, Machinery processing, Interior decoration , Medical
Delivery Time 10 to 25 days
Payment Term TT,LC, Western Union, etc.
DX51D Construction Ppgi Coil Sheet Z80 Coating
Product Show
DX51D Construction Ppgi Coil Sheet Z80 Coating
Company Profile
TianZhu was founded in 2013, Jinshanbei industrial park, no. 90 huian road, wuxi city, China the starting point of new "Belt and Road" and the old Silk Road, as a leading Manufacturer and Supplier of Steel Pipe and Special Alloys, Tianzhu has been insisting on creating value for customers, always adhering to the development strategy of "supplying high-end products, establishing
world-renowned enterprise" to provide global customers with superior quality products and high-quality services. Through theresource integration of a variety of metal materials, TianZhu has become one of the biggest METAL SUPERMARKETS and can provide all kinds of special metal materials that are made in China and imported to our customers.Our product range:Stainless Steel
products,Carbon steel products, Galvanized steel products,Pre-coated galvanized products,Various steel profiles products......
We serve customers with integrity, welcome friends in need to come to consult and order,Our products and services will surely satisfy you!
Packing & Delivery
DX51D Construction Ppgi Coil Sheet Z80 Coating
DX51D Construction Ppgi Coil Sheet Z80 Coating
DX51D Construction Ppgi Coil Sheet Z80 Coating
Packing Details:
Export standard package, or as customers request.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 7-15 days, or according to the order quantity or upon negotiation.
Our Advantages
DX51D Construction Ppgi Coil Sheet Z80 Coating
FAQ
Q: Can you send samples?
A: Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.

Q: What are the certifications for your products?
A: We have ISO 9001, SGS, EWC and other certifications.

Q: How long does your delivery time take?
A: In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next
working day.

Product Tags:

DX51D Prepainted Galvanized Steel Coil



Z80 Coating ppgi coil sheet



DX51D Ppgi Coil Sheet


Wholesale DX51D Construction Ppgi Coil Sheet Z80 Coating from china suppliers

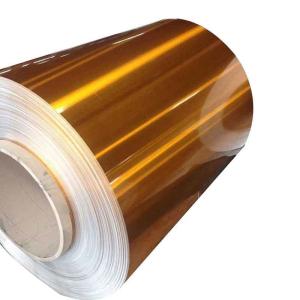

DX51D Construction Ppgi Coil Sheet Z80 Coating Images
